Safeguard
- Type = Digital Safeguard (Smart Safeguard)
- Model = SGVC2W21
- Over cutoff voltage = 245V (AC)
- Under cutoff voltage = 175(AC)
- Delay time = 5 Seconds (or) 5 Minute ( Auto bypass)
- Warraty = LifeTime
Previous
Next
Safeguard
Category: Product
48V Battery Charger Control
MODEL – MKT48VT0920
Used – It is used in the generator on the telephone tower.
FUNCTION – Preset 36V to 80V
Battery Charging Control
Chanrging Time adjust 1 minute to 10 Hour.
Warray – 6 month (give a new one).
Previous
Next
Speedometer for RBE Railway
Part Number – MKT-ERU-3
| Power Supply Voltage |
: 18V to 36V DC from RBE Railway Bus build in Battery. |
| Power |
: Less than 20 Watts |
| Speed Dial |
: 0 – 120 Km/h |
| Speed Measurement |
: Magnetic pick-up (RBE25 ) |
|
: Speed Generator (RBE50 ,RBE30 ) |
|
|
MKT SPEED Transmitter Unit (MKT-TSU-1) |
|
|
Recording System |
: Using SD and Industrial grade flash. |
|
Resolution of Recording |
: Long-Term Memory can store minimum |
|
: (180 Days travel at resolution of 20 seconds ) |
|
|
: Short-Term Memory can store Data of minimum |
|
|
: (72 Hours travel at resolution of 1 second.) |
|
|
Display |
: 128×64 Graphic Display OLED |
|
Display parameters |
: Time, Date, Distance, System status, etc. |
|
Temperature range |
: -5 degree C to +80 degree Centigrade |
|
Data Entry Keyboard |
: Through 16 Key setting any parameter. |
|
Wheel diameter setting |
: Adjustable through keypad 640mm – 1220mm. |
|
Digital Input |
: 5 Input of 24V DC |
|
Digital Output |
: Customer requirement |
|
Downloading of Recorded |
: Data can be download to using USB Thumb Drive. |
|
: Data |
|
|
Analysis Software |
: MEDHA MSW 918 Version 5.1 compatible ( USE MRT91 ) |
Previous
Next
PIC Development Board V.2.0
Previous
Next
Product Details
- Name : PIC Development Board V.2.0
- Model Number : MKT Dev V.2.0
- Usage : Developer , Student , Production
- Power Type : USB Power , ON board 3.3V regulator
- Display : 4 Digit 7 segment
- communication : CH340G usb to TTL converter
- Analog : Variable resistor for AN0 and AN2
- Digital : Yellow LED 7 Nos , 4×4 keypad compatible pin
- LCD : 16×2 LCD , 20×4 LCD compatible pin
- Sensor : Ultersonic sensor (HC SR04) compatible pin
- Switch : SMD push button 3 Nos
- Motor Control : Full Bridge, Half bridge , PWM output compatible pin
- One wire : 18b20 , DHT11 compatible pin
- Peripheral : SPI , I2C , USART
Cost : 55000 (MM)Kyat
DMIA Company also installed in railway locomotives
MICRO MKT CO., LTD PRODUCED FROM
DEAD MAN AND WHEEL SLIP DEVICE MALAYSIA’S SETUP USED AT DMIA COMPANY TRAIN LOCOMOTIVESMalaysia used DMIA Company also installed in railway locomotives
Locomotive Load Test Bench
GP Current – 2000 AMP
GP Separate Voltage – 100 V
GP Seprate Current – 100 A
Alternator Voltage – 400 V
Alternator Current – 25 A
Battery Voltage – 100 V
Battery Current – 50 A
GP Shunt Volt – 100 V
GP Shunt Current – 25 A
Output KW – (GP Voltage x GP Current)
Engine R.P.M – 3000
Presentation
The technical manual concerns the one of the Load Test Bench. This Product is designed to operate on the voltage and current input via from Hall-Effect Sensor Modules, Industry PC, Communicate to Serial RS-232, Display Metering are
1. GP Current
2. GP Volt
3. GP Separate Volt
4. GP Separate Current
5. Alternator Volt
6. Alternator Current
7. Battery Voltage
8. Battery Current
9. GP Shunt Volt
10. GP Shunt Current
11. Output KW
4 – Data Logging Mode
File System = Microsoft Access File
Logging Format = Push Button on Touch Screen or Mouse Click to save current data
Printing = Yes
Data Base = Standard Load Test Character for Each Locomotive Type
Locomotive Load Test မှာ Engine R.P.M
Locomotive Load Test မှာ Engine R.P.M နဲ့ Load Voltage & Load.
အောက်မှာ ပေးထားတဲ့ Video ဖိုင်မှာ သွားရောက်ကြည့်ရှု့လိုက်ပါ။

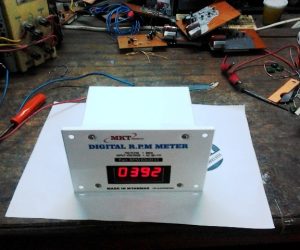

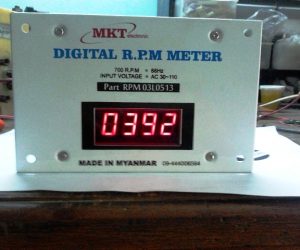

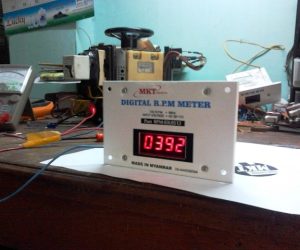

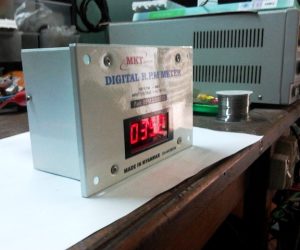

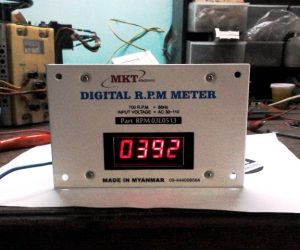

Krupp Engine R.P.M Meter
- Name – Krupp Engine R.P.M Meter
- R.P.M Range- 0 to 3000
- Display Voltage- 4 Digit 7 segment LED display
- MicroController Unit- PIC16F677 8bit FFT
- Voltage Regulation- 7% (actually)
- Temperature- ( -45 to 85 Centigrade )
- Warranty – 1 Year
Previous
Next
Engine Over Speed Device Product
- Name – Engine Over Speed Device
- Over Speed R.P.M – 1600 r.p.m
- Input Voltage – 24 to 110V DC
- Relay Output – 30A
- COM NC NO
- Verify Test – 75% of Max R.P.M
- Regulation – 5% (actually)
- Temperature – ( -45 to 85 Centigrade )
- Warranty – 1 Year
Previous
Next
Electronic Speed Switch CAT Engine 3516 & 3512
Name – Electronic Speed Switch CAT Engine 3516 & 3512 ( 2000HP & 900HP)
- R.P.M Display – 0 to 3000 r.p.m
- Display – 4 Digit 7 segment LED display
- CT R.P.M – 400 r.p.m
- OPSS R.P.M – 1200 r.p.m
- Over Speed R.P.M – 2124 r.p.m ( 2000HP ) & 1650 ( 900HP )
- MicroController Unit – PIC16F877 8bit MCU FFT
- Regulation – 5% (actually)
- Temperature – ( -45 to 85 Centigrade )
- Warranty – 1 Year
